Supports all ATX 2.01, ATX12V 1.3/2.0/2.1/2.2/2.3, and EPS12V systems
Home > Product > Power Supplies > 80plus series  > Model: HP-1000-G14C     (discontinued)

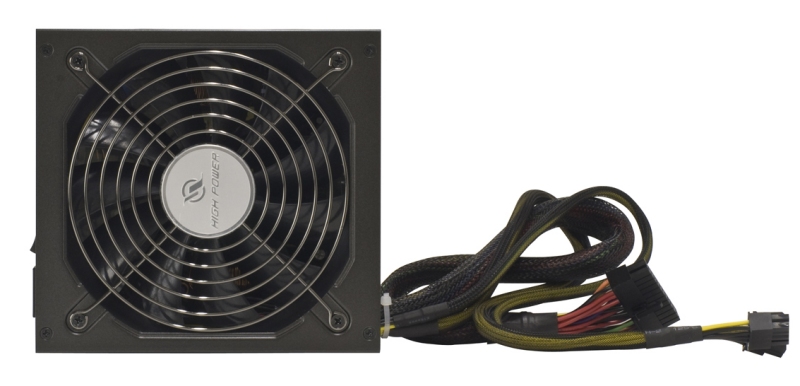

ABSOLUTE POWER 1000W










  • 1000-watt output, true-wattage rated
  • 80Plus Certified unit provides a typical efficiency of 85.48% -  Low heat / Low noise / Save energy
  • <1w Low Standby Power Consumption -  EuP 2010 Lot 6 Compliant.

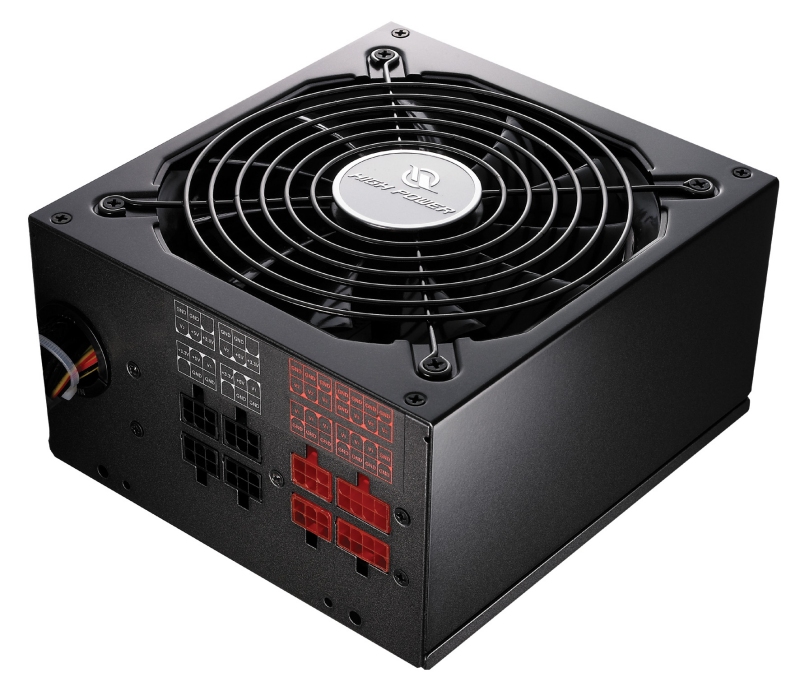

  • Modularized Cable Management to eliminate clutter and improve air flow inside the case
  • Compliance with the latest Intel standard ATX 12V V2.3 and EPS 12V V2.92
  • All DC power cables are nicely sleeved in black nylon
  • Support Intel Xeon, Pentium D, Extreme Edition, Core 2 Quad, Core 2 Duo, Core 2 Extreme, Quad Core, i5, i7 /Haswell, and AMD 64 X2, Quad-Core, Six-Core, 8-Core, Phenom systems
  • Multiple 6pin & 8pin PCI-E connectors included
  • Active Power Factor Correction (PF>0.99) for more efficient and environmentally friendlier power delivery
  • Full range AC input with automatic AC input voltage selection

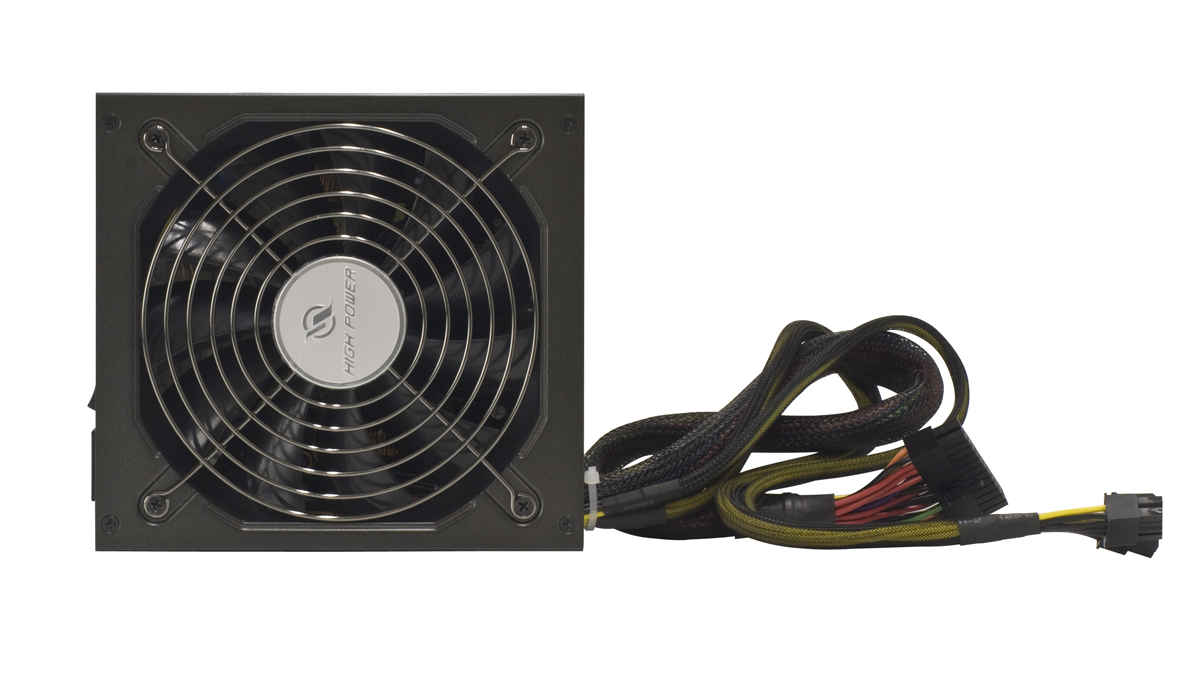

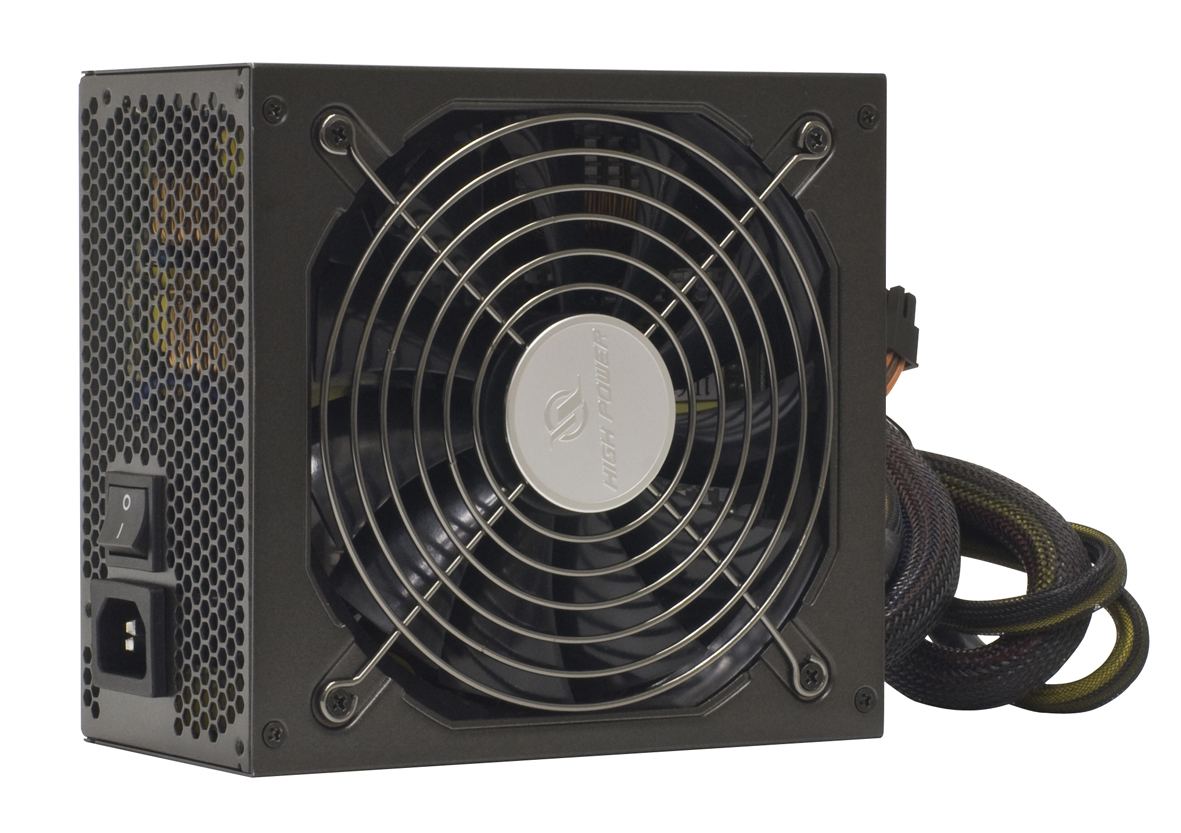

  • Ultra-silent operation with 140mm fan and automatic fan speed control
  • Quad +12V Output Rails
  • RoHS Compliant Lead-free - made with all hazardous-free components
  • nVidia SLI Ready
  • Complete 6*Startm electrical protections:
  •    Over Voltage Protection
  •    Under Voltage Protection
  •    Over Current Protection
  •    Over Temperature Protection
  •    Short Circuit Protection
  •    Over Power Protection
  • Fan Delay-Off Feature:  Allows power supply fans to continue running and thus continue to cool the system even after PC shut down until the power supply internal temperature is under 50 degree C.  This feature extends hardware component's life expectancy
  • Safety & Regulatory Approval from UL, cUL, TUV, FCC, CE, CB, and BSMI






nVIDIA
SLITM
Ready



ATI
Crossfire
Ready

  80Plus Certified
for High Efficiency




EuP 2010
Lot 6

Compliant












Connectors Summary:

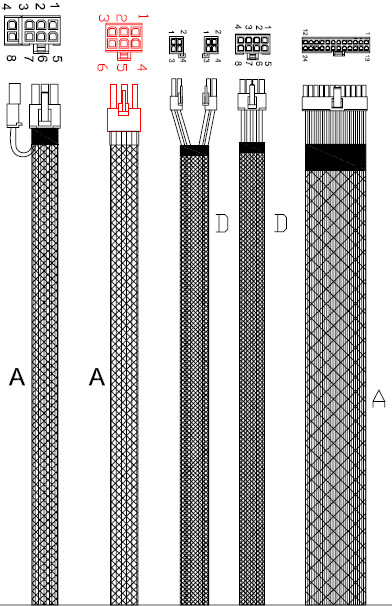

Native
(1) 24pin ATX Main Connector
(1) CPU 8pin EPS12V Power Connector
(1) CPU 8pin (4+4) ATX12V Power Connector
(1) PCI-E 6pin Power Connector
(1) PCI-E 8pin (6+2) Power Connector

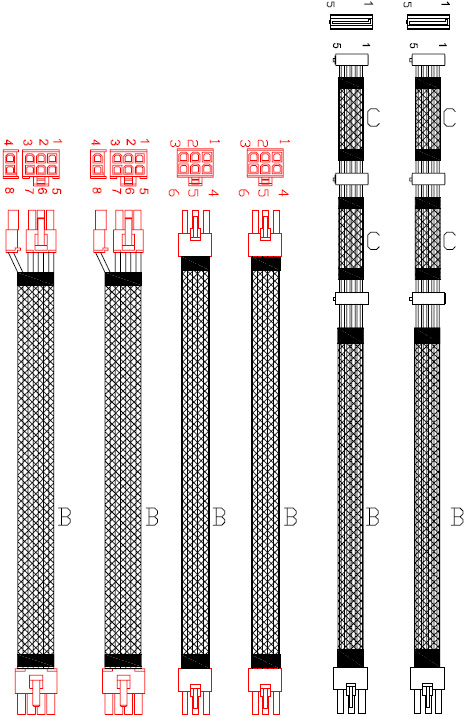

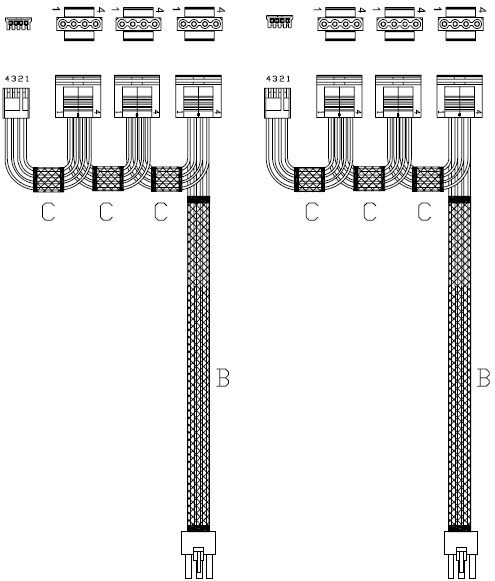

Modular
(6) Molex 4pin Peripheral Power Connectors
(6) SATA Power Connectors
(2) PCI-Express 6pin Power Connector
(2) PCI-Express 8pin (6+2) Dual-Use Power Connector
(2) Floppy Power Connector

(6) SATA









(6) PCI-E





Native:











Modular



Lengths
A - 500mm (19.69 inch)
B - 450mm (17.72 inch)
C - 150mm (5.91 inch)
D - 550mm (21.65 inch)





Specifications:

  • Fan Delay-Off Feature:  Allows power supply fans to continue running and thus continue to cool the system even after PC shut down until the power supply internal temperature is under 50 degree C.  This feature extends hardware component's life expectancy.
  • Advanced Double Forward Circuit and Double Layer PCB: Integrate overall protection mechanism and fan control function to improve reliablity, efficiency, and safety.
  • Full Complete 6*Startm Electrical Protection System: Over Current Protection, Over Voltage Protection, Under Voltage Protection, Short Circuit Protection, Over Temperature Protection, and Over Power Protection.
  • Automatic fan speed control (AFC): extends fan life, cuts down energy consumption, reduce fan noise, and reduce the chance of over-heating.
  • Quad +12V Output Rails: Four independent + 12V output rails ensure safe and stable operation under heavy operation.
  • All Output Cables with Nylon Sleeve: Cable sleeve avoids cable clutter, allows neat and easy installation for an improved airflow.



 Lead-FREE
 Cadium-
FREE
 Mercury-FREE
 Hexavalent chromium-FREE
 PBB-FREE
 PBDE flame retardants-
FREE
RoHS Compliant - made with hazardous-free components
RoHS is the Restriction Of the use of certain Hazardous Substances in electrical and electronic equipment. This has been a standard in Europe and is now becoming a standard in the world. Not only lead, but cadium, mercury, hexavalent chromium, polybrominated biphenyl (PBB), and polybrominated diphenyl ether (PBDE) flame retardants are limited as well.


 Patented EZ-Extract
  (squeeze-and-pull)

  Molex Peripheral Power Connectors
No longer must you fight and hurt your fingers to pull out a peripheral power connector from a hard drive or CD ROM drive.  With this patented EZ-Extract connectors, all you have to do is to squeeze the connector shields as pictured.  And then the shield will in turn help push the connector out of the drive socket.


Quad 12V rails ATX
Quad +12V Output Rails

+12V1                +12V3
+12V2                +12V4
Four independent  +12V output rails ensure safe and stable operation under heavy operation.   Total 12V output power is a staggering 900-Watt, strong enough to handle all types of applications





AC INPUT : 100-240V (Full Range)    Frequency: 47-63Hz
Maximum Input Current: 13A

Voltage

+12V1

+12V2

+12V3
+12V4

+5V

+3.3V

-12V

+5Vsb

Min
0.1A
0.5A 0A
0A
0.5A
0.8A
0.0A
0.1A

Max

20A

20A

30A
30A

30A

28A

0.8A

3A

Regulation

+ 5%

+ 5%

+5%
+5%

+ 5%

+ 5%

+ 10%

+ 5%

Ripple & Noise

200mV

200mV

200mV 200mV

100mV

100mV

200mV

100mV

Max Output

900W

180W

9.6W

15W

Max Power

1000W

  • Complete 6*Startm electrical protections:
         * Over Voltage Protection
        * Under Voltage Protection
        * Over Current Protection
        * Over Temperature Protection
        * Short Circuit Protection
        * Over Power Protection

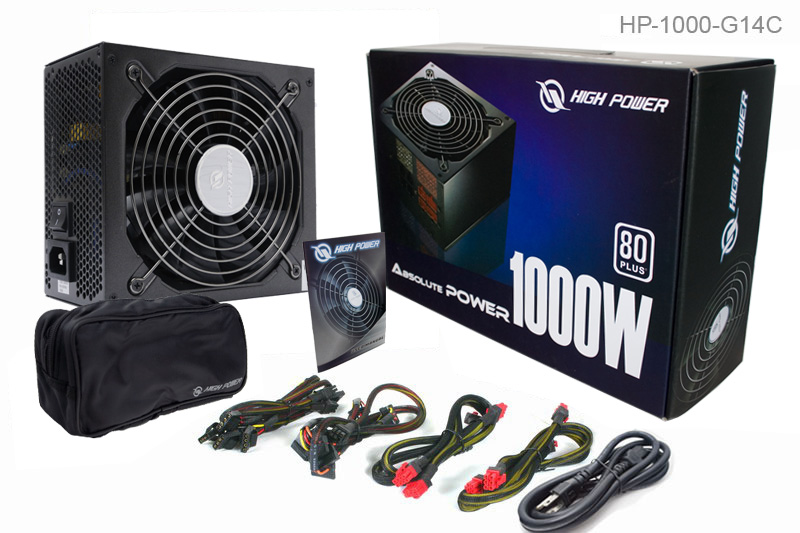

Model HP-1000-G14C (ABSOLUTE POWER 1000W)
Type ATX 12V V2.3
Input Voltage 100-240V
Input Current 15A
Input Frequency Range 47-63Hz
PFC. Active
Power Good Signal 100-500mS
Hold Up Time 16mS
Efficiency 80 Plus Compliant: Yes
Typical efficiency (50% Load): 85.48%
Average efficiency: 83.41%
<1w Low Standby Power Consumption -  EuP 2010 Lot 6 Compliant.
MTBF 100,000 hrs
Protection UVP.OVP.SCP.OCP.OPP
Output Capacity
Dimension(W/H/D) 150x160x86mm
Operation Temperature 0-50 Celsius
Safety UL/CUL/TUV/CE/CB/FCC

Note: Fan size of 140mm is measured as the length of the fan square side frame.

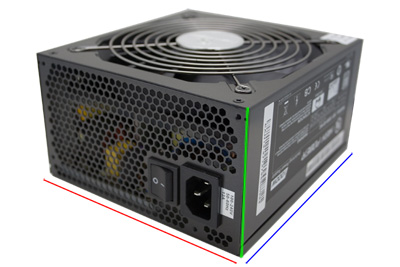

Dimensions: 150 x 160 x 86  mm





Rave Reviews

.. The Absolute Power 1000 is not very large, particularly for a kilowatt unit where we've seen much larger units, so there are no concerns about space issues inside your case...  Opening up the Absolute Power 1000, the main feature that is immediately noticeable is the dark-coloured 11-blade, 135mm fan which features greater airflow at reduced noise levels, and is controlled automatically to adjust the speeds according to the temperatures and load levels... Regarding the noise produced by the unit, as we know, the higher RPMs a fan speeds, the louder the noise, but then also the cooler the temperatures.  It is an ongoing balancing act between noise and cooling for just about any mechanical component in a system.  To that end, it seems that the Absolute Power 1000's fan tends to run at low-to-moderate RPMs and the fan is very quiet. When heavily loaded, however, the fan is audible but still quiet and won't be heard inside a case.
- PureOverClock.com







Model Relationship: HPC-1200-G14C is the 1200W dual-fan upgrade model
