Supports all ATX 2.01, ATX 2.03 & Intel P4 (12V) systems
Home > Product > Power Supplies > Models: HPC-620-A12C

NEW!  620W True-Wattage Rated Extreme Edition Power Supply
FOB China OEM built-to-order model -- Lead time is 45 days for qty 500pcs minimum order.
Not available for North America market


Comprehensive support for
ATX, BTX, and EPS12V form factors electrically and mechanically
NVIDIA® SLITM Ready
ATITM Crossfire Ready
Support Xeon, Pentium D, Core Duo, Extreme Edition, and AMD 64 X2 Processor Based Systems

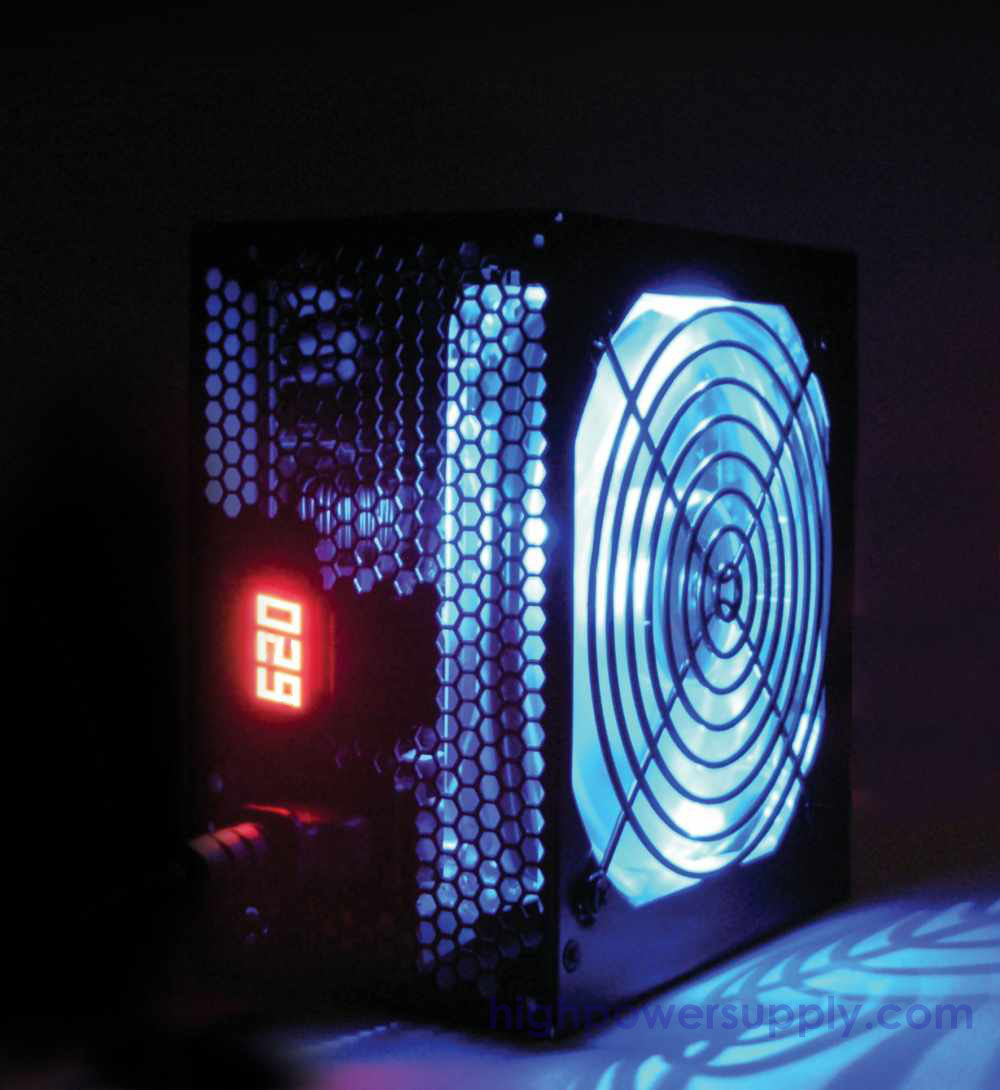

 Built-in wattage meter (Patented):

Watch your system 's power consumption at one glance !
  • 620 Watts True-Wattage Rated
  • ACTIVE PFC for reduced harmonic distortion
  • Full range AC input with automatic AC input voltage selection
  • Intel ATX 12V V2.2
  • Triple +12V Output Rails - Three independent + 12V output rails ensure safe and stable operation under heavy operation.
  • Integrated case fan controller built-in
  • All new complete 6*Startm protection system:

        * Over Voltage Protection
        * Under Voltage Protection
        * Over Current Protection
        * Over Temperature Protection
        * Short Circuit Protection
        * Over Power Protection

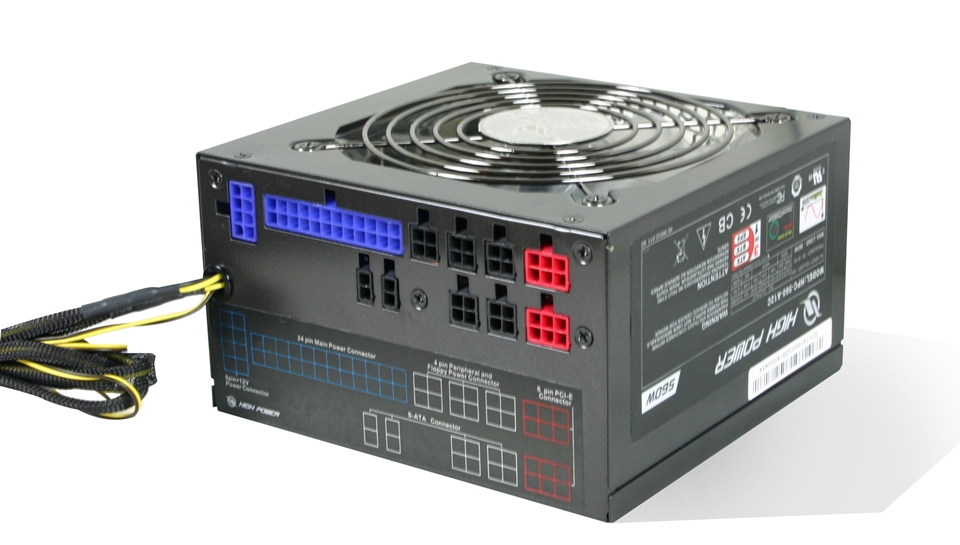

click on picture to enlarge

  • Low Noise Fan with Anti-Vibration Pad included - Large quiet 12cm with twin ball bearing fan for an ultimate balance of low noise and vital reliability.
  • Advanced Double Forward circuit design and double-layer PCB manufacturing with flush  mount SMT components.  The result is a high efficency (over 80%)  power supply with improved reliablity - reduce heat, save energy, and last longer.
  • All cables come pre-sleeved
  • Gold coated terminal connectors


Patented EZ-Extract (squeeze-and-pull)
Peripheral Power Connectors

The Retail Package:



ELECTRICAL SPECIFICATIONS

INPUT
Input range: 110/230 Vac
Frequency: 50-60 Hz
Input current: 10.0A / 5.0A
EMI/RFI: FCC Part 15 Class B & CISPR 22 Class B

OUTPUT
Maximum power: Max.560 Watts
Hold up- time: >16ms at full load at 115Vac
Over Voltage Protection: +3.3 V : < 4.3 V
+5 V : < 7.0 V
+12V : < 15.6 V
Short circuit protection: Latch off
Power good signal: TTL compatible. Signal goes high 100-500ms
Signal goes low at least 1ms before main O/P.

ENVIRONMENTAL


Operating temperature: 10°C to 50°C
Storage temperature: -40°C to 70°C
Cooling: Self contained fan with speed control in regard to O/P load or ambient Temp.
MTBF: > 100,000 hours at 75% load and 25°C ambient conditions



OUTPUT SPECIFICATION
Output voltage
MIN. Load
MAX. Load
Regulation
Peak-to-Peak Max.
+5V
0.5A
30.0A
+5% ~ -5%
70mV
+12V1
1.0A
16.0A
+5% ~ -5%
120mV
+12V2
1.0A
25.0A
+5% ~ -5%
120mV
+12V3
1.0A
17.0A
+5% ~ -5%
120mV
- 12V
0.0A
0.5A
+10% ~ -10%
150mV
+5Vs
0.1A
2.5A
+5% ~ -5%
70mV
+3.3V
0.8A
28.0A
+5% ~ -5%
70mV
* Maximum continuous combined load on +3.3VDC and +5VDC outputs shall not exceed 180W.
* Maximum combined load on 12V1+12V2+12V3 outputs shall not exceed 500W.
* Maximum combined load on 12V1+12V3 outputs shall not exceed 300W.

Standard ATX Main Connector Pin-Out

Pin Signal Wire Color Pin Signal Wire Color
1 +3.3V Orange 13 +3.3V
 		Orange
2 +3.3V Orange 14 -12V Blue
3 COM (GND) Black 15 COM (GND) Black
4 +5V Red 16 Power On Green
5 COM (GND) Black 17 COM (GND) Black
6 +5V Red 18 COM (GND) Black
7 COM (GND) Black 19 COM (GND) Black
8 Power Good Gray 20 N/C
N/C
9 +5 V Standby Purple 21 +5V Red
10 +12V1 Yellow 22 +5V Red
11 +12V1 Yellow 23 +5V Red
12 +3.3V Orange 24 COM (GND) Black

 S-ATA Power Connector Pin-Out

Pin Signal Wire Color
1 +3.3V Orange
2 COM (GND) Black
3 +5V Red
4 COM (GND) Black
5 +12V2 Yellow

 Peripheral Connector (a.k.a. Big 4pin) Pin-Out

Pin Signal Wire Color
1 +12V3 Yellow
2 COM (GND) Black
3 COM (GND) Black
4 +5V Red

Floppy Connector Pin-Out

Pin Signal Wire Color
1 +12V3 Yellow
2 COM (GND) Black
3 COM (GND) Black
4 +5V Red

PCI-Express Connector PP Pin-Out

Pin Signal Wire Color
1 +12V1 Yellow
2 +12V1 Yellow
3 +12V1 Yellow
4 COM (GND)
 Black
5 COM (GND) Black
6
 COM (GND) Black

PCI-Express Connector PQ Pin-Out

Pin Signal Wire Color
1 +12V2 Yellow
2 +12V2 Yellow
3 +12V2 Yellow
4 COM (GND)
 Black
5 COM (GND) Black
6
 COM (GND) Black




HIGH POWER®  is a NVIDIA® SLITM Certified Partner
