HIGH POWER® HPC-300-102 DF

Supports all ATX 2.01 , ATX 2.03 & ATX 12V systems
Home > Product > Power Supplies > HPC-300-102 DF (Discontinued)

430-Watt 120mm Fan Upgrade Available

300 Watts output.

Passed Intel Pentium 4 power supply testing⁺.

Dual High quality Fans design. (function of 2nd fan)

Automatic Fan Speed Control (A.F.C.).

Fan Speed Monitor connector (3-pin) - optional

Built-in Quintuple Protection.

I/O Switch for manual shut-down.

Silver Fan-Guard Version
Available

Replacement power supply for :

Gateway Part Number(s) 6500055, 6500457, 6500470, 6500525, 6500526, 6500583, 6500563, 6500582, 6500583, 6500611, 6500612, 6500652, 6500684, 6500704, 6500124 6500165 6500404 6500453 6500454 6500457 6500459 6500470 6500525 6500526 6500563 6500582 6500583 6500611 6500612 6500652 6500684 6500704

Gateway POW145001AAWW, POW145002AAWW, POW145004AAWW, POW145006AAWW
HP Spare 0950-2700 0950-3971 5183-6914 5187-1098

ASTEC ATX250-3505, FSP300-60GI, FSP235-60GI,

HIPRO HP-235ATXA6,

LITEON PS-5161-2G,

NEWTON NPS-160-CB-1, NPS-200PB-119A, NPS-200PB-119B, NPS-200PB-119C, NPS-250EB B, NPS-250CB A, NPS-250CB B,
NPS-250HB A
PowerTronics PK-6145-DT, Power Tronics PK-6145DT-3 Power Supply.
HIGH POWER HPC-250G2, HPC-250G1, HPC-250-101, HPC-250-102, HPC-300-102 Power supply.

eMachine desktop PC Models: T2642, T3104, T3302, T5010

Special motherboard supported: Intel Pentium 4 Skt. 478 LEXINGTON Gateway Motherboard - Gateway Part No. 4000779 , 4000796 , 4000755 , 2516298

Specification | Connectors Summary | Close-up Pictures | Cable's Length| Function of 2nd Fan

Specification

		Intel Pentium 4 Ready.
		Works with any Pentium III processor based system.
		Works with any Celeron processor based system.

		Recommended for Athlon^TM XP/ 64 systems.
		Recommended for Athlon^TM/Thunderbird systems.
		Recommended for Duron^TM systems.

Dual Fan design with gold plated flush mount fan guard for improved air flow
Automatic fan speed control (AFC)
Fan Speed Monitor connector (3-pin)
- optional

Built-in Quintuple Protection:

Output Voltage	Load Range MAX	Regulation	Ripple Peak-to-Peak Max.
1. +5V	25.0A	+5% ~ -5%	50 mV
2. +12V	13.0A	+5% ~ -5%	120 mV
3. -5V	0.3A	+10% ~ -10%	50 mV
4. -12V	0.8A	+10% ~ -10%	120 mV
5. +5VSB	2.0A	+5% ~ -5%	50 mV
6. +3.3V	20.0A	+5% ~ -5%	50 mV

*+5V +3.3V combined output should not exceed 180W

MTBF Life Expectancy of this model:
100,000 hours* (11 years & 2 months)
* Excludes the life of the fan

Operating temperature range:
10^oC - 50^oC (50^oF - 122^oF)

High standard of quality with FCC, UL, CSA, CE, TUV, SEMKO, NEMKO, FIMKO, DEMKO, and CB certification.

+ optional version with 3-pin fan speed monitor connector passed Intel Pentium 4 approval testing.

Connectors Summary

Connector Name	Quantity	Picture
20-pin and 24-pin Dual-use Main Connector	1
Peripheral Power Connector	4 (5, optional)
4-pin ATX12V Power Connector	1

Connector Name	Quantity	Picture
Floppy Drive Power Connector	1 (2, optional)
6-pin Aux Power Connector	1
3-pin Fan Speed Monitor - optional	1

Close-up Pictures
(of the optional version with 3pin Fan Speed Monitor Connector)

click to enlarge

click to enlarge

Heat absorb by power supply and Fan blows out the heat.

The function of 2nd Fan (optional gold color fan guard shown)

The 2nd fan of Power Supply will absorb the heat generated by CPU more efficiently.

The 2nd fan also serves as a backup in case of the primary fan failure.

Cable's Length

	1X 20-pin / 24-pin dual-use main connector to fit any mainboard.

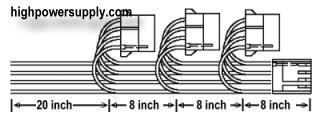

	3X (optional, standard is 2) Peripheral Power Connector. 1X Floppy Drive Power Connector (optional).
	2X Peripheral Power Connector. 1X Floppy Drive Power Connector.

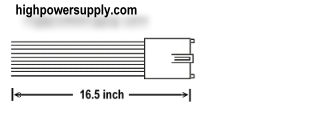

	1X 6-pin Aux Power Connector.
	1X 4-pin ATX12V Power Connector.

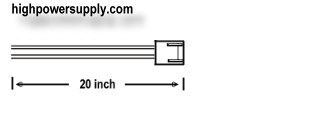

	1X 3-pin Fan Speed Monitor - optional

Standard version shown above.

Dimenisons (for both versions): 150(W) x 86(H) x 140(D) mm

430-Watt 120mm Fan Upgrade Available

This web site is powered by
100% wind energy

UPC: 897101000042
EAN: 0897101000042

HIGH POWER^®is a nVIDIA^®SLI^TM Certified Partner
