HIGH POWER ® HPC-360-102

Supports all ATX 2.01, ATX 2.03 & Intel P4 (12V) systems
Home > Product > Power Supplies > HPC-360-102 (Discontinued)

360 Watts output.

Passed Intel Pentium 4 power supply testing.

I/O Switch for manual shut-down.

High quality ball bearing fan.

Automatic Fan Speed Control (A.F.C.).

Extra long cables to support server (full) tower cases.

Fan Speed Monitor connector (3-pin).

Built-in Quad Protection.

USA & Worldwide
(Fulfilled by J.D.Research, Inc.)

Energy-Efficient version (PFC)
Refurbished or Demo Units
Available for US$ 41.00

Specification | Connectors Summary | Close-up Pictures | Cable's Length

Specification

		Intel Pentium 4 Ready.
		Works with any Pentium III processor based system.
		Works with any Celeron processor based system.

		Recommended for Athlon^TM XP systems.
		Recommended for Athlon^TM/Thunderbird systems.
		Recommended for Duron^TM systems.

360 Watts
maximum load

Output Voltage	Load Range MAX	Regulation	Ripple Peak-to-Peak Max.
1. +5V	35.0A	+5% ~ -5%	50 mV
2. +12V	17.0A	+5% ~ -5%	120 mV
3. -5V	0.8A	+10% ~ -10%	100 mV
4. -12V	0.3A	+10% ~ -10%	120 mV
5. +5VSB	2.0A	+5% ~ -5%	50 mV
6. +3.3V	28.0A	+5% ~ -5%	50 mV

*+5V +3.3V combined output should not exceed 220W

MTBF Life Expectancy of this model:
100,000 hours* (11 years & 2 months)

Operating temperature range:
10^oC - 50^oC (50^oF - 122^oF)

High standard of quality with FCC, UL, CSA, CE, TUV, SEMKO, NEMKO, FIMKO, DEMKO, and CB certification.

Connectors Summary

Connector Name	Quantity	Picture
20-pin Standard ATX connector	1
Peripheral Power Connector	6
4-pin ATX12V Power Connector	1

Connector Name	Quantity	Picture
Floppy Drive Power Connector	2
6-pin Aux Power Connector	1
3-pin Fan Speed Monitor	1

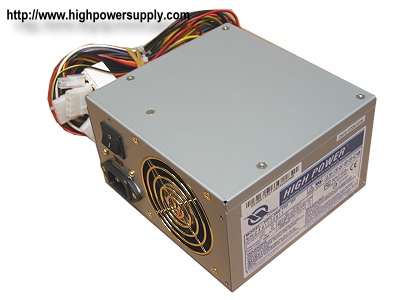

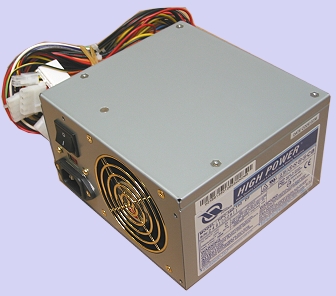

Close-up Pictures

Cable's Length

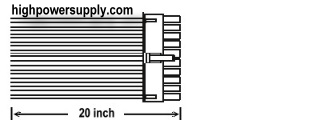

	1X 20-pin Standard ATX connector to fit any ATX mainboard.

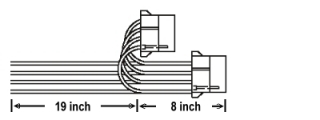

	2X Peripheral Power Connector.

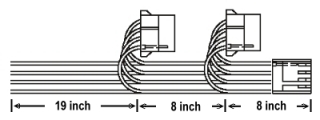

	2X Peripheral Power Connector. 1X Floppy Drive Power Connector.
	2X Peripheral Power Connector. 1X Floppy Drive Power Connector.
	1X 6-pin Aux Power Connector.

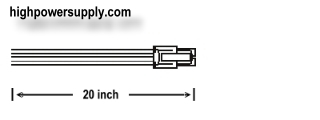

	1X 4-pin ATX12V Power Connector.

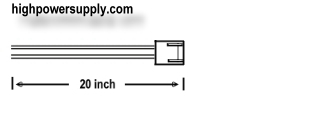

	1X 3-pin Fan Speed Monitor.

Functional and Wattage Capacity Upgrade from any of these models:

Gateway Part # 6500055, 6500457, 6500470, 6500525, 6500526, 6500583, 6500563, 6500582, 6500583, 6500611, 6500612, 6500652, 6500684, and 6500704
LITEON PS-5161-2G

POW POW 145001AAWW, POW 145002AAWW, POW 145004AAWW, POW 145006AAWW

ASTEC ATX250-3505

FSP FSP300-60GI, FSP235-60GI

HIPRO HP-235ATXA6

NEWTON NPS-160-CB-1, NPS-200PB-119A, NPS-200PB-119B, NPS-200PB-119C, NPS-250EB B, NPS-250CB A, NPS-250CB B, NPS-250HB A, PowerTronics PK-6145-DT, Power Tronics PK-6145DT-3 Power Supply.

USA & Worldwide
(Fulfilled by J.D.Research, Inc.)

Energy-Efficient version (PFC)
Refurbished or Demo Units
Available for US$ 41.00

Available Replacement Options:

HPC-360-302 DF is the Active PFC (most energy-efficient) Dual-Fan version
HPC-360-202 DF is the Passive PFC (more energy-efficient) Dual-Fan Version
HPC-360-202 is the Passive PFC (more energy-efficient) version.
HPC-360-102 DF is the dual fan version.
