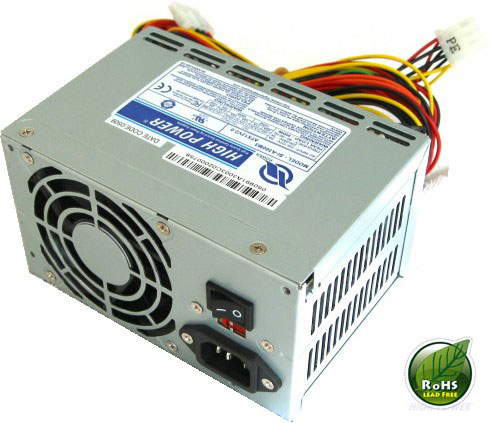

also known as Fan-C, FAN/C
    •   Built-in Triple Protection.
    •   Galvanized steel casing for long rust-free protection.
    • RoHS Compliant - made with hazardous-free components
  • Recommended by AMD for Athlon/Thunderbird/Duron.
  • Supports socket 775 & 478 Pentium 4 Prescott systems


  Connectors Summary | Close-up Pictures | Cable's Length | Dimensions | Cross Reference Chart

Specification


Intel Pentium 4 socket 775 & 478 Ready.
Works with any Pentium III processor based system.
Works with any Celeron processor based system.
Recommended for AthlonTM XP systems.
Recommended for AthlonTM/Thunderbird systems.
Recommended for AthlonTM 64 systems.



Output
Voltage		 Load Range
MAX		 Regulation Ripple
Peak-to-Peak
Max.
1. +5V 25.0A +5% ~ -5% 80 mV
2. +12V1 10.0A +5% ~ -5% 120 mV
3. +12V2 15.0A +5% ~ -5% 120 mV
3. -12V 0.5A +10% ~ -10% 150 mV
4. +5VSB 2.0A +5% ~ -5% 80 mV
5. +3.3V 17.0A +5% ~ -5% 80 mV
+5V +3.3V combined output should not exceed 145W
+12V1 & 12V2 combined output should not exceed 180W

MTBF Life Expectancy of this model:
100,000 hours* (11 years & 2 months)

Operating temperature range:
10oC - 50oC (50oF - 122oF)




Connectors Summary


Connector NameQuantityPicture
20pin & 24pin
dual-use main connector

(fixed 24pin version optional)
1
click to supersize
Peripheral Power Connector4
Floppy Drive Power Connector2
Connector NameQuantityPicture
Serial ATA Power Connector1
4-pin ATX12V Power Connector1
3-pin Fan Speed Monitor Connector

also known as Fan-C, FAN/C, P7, or P9
1
PCI Express Power Connector Adapter Cable
1

* Excludes the life of the fan

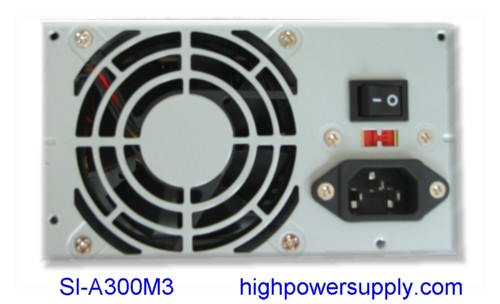

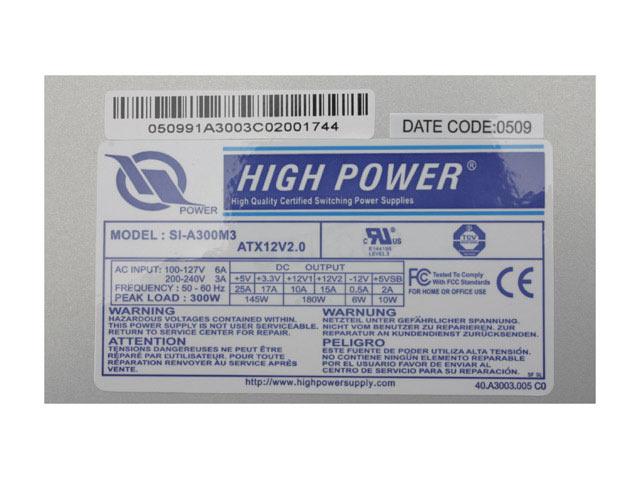

Close-up Pictures

click to enlarge


click to enlarge




Cable's Length

1X Main connector to fit any ATX mainboard - 20 or 24pin.
2X Peripheral Power Connector.
1X Floppy Drive Power Connector.
2X Peripheral Power Connector.
1X Floppy Drive Power Connector.

|<----------  21 inch -------> |
1X Serial ATA Power Connector.
1X 4-pin ATX12V Power Connector.

Used only in Intel Pentium 4 system.  If you do not have an Intel Pentium 4 system, you can just leave this connector alone.
1X 3-pin Fan Speed Monitor Connector.
also known as Fan-C, FAN/C, P7, or P9

Dimensions
Cross Reference Chart
Upgrade Replacement Power Supply for
ACBel API-7675, ACBel API-8541,
Astec AA20360,
Bestec ATS-100, Bestec ATS-150, Bestec ATX-1956D, Bestec ATX-1951D, Bestec ATX-1956F,
Delta DPS-110-1, Delta DPS-145PB-112, Delta DPS-160GB, Delta DPS-200PB-74 B,
HIGH POWER® SI-C145M2  SI-X145M2  SI-X145M3  SI-X145  SI-C200M2  SI-A250M2
Hipro HP-146SSA, Hipro HP-146SSC, Hipro HP-150CLFA6, Hipro HP-A2027F3,
IBM 20L2166,
In Win IPS-1806CV-60, In Win IW-P180B2-0, In Win IW-P180BX-0, In Win IW-P180BX-1, In Win LPS-1806DV-20,
PC Chips PC100 PS150A,
Yokogawa PS036B-0101 Power Supply.
